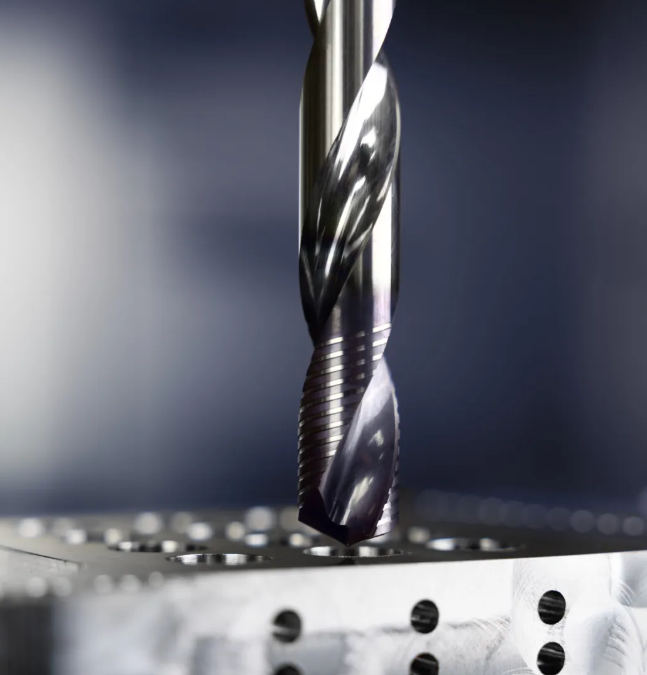

刀整体硬质合金钻头-大幅提高产品性能

霸刀面向市场推出了新一代整体硬质合金钻头。

新一代整体硬质合金钻头专为解决钢件和铸铁钻孔加工的问题而设计，在技术上进行了独一无二的改进：首先是新的Krato·tec® （克拉）复合涂层，霸刀已经在钻头产品成功应用了这一技术。霸刀宣传的刀具寿命提高50%是通过测试证明，安全可靠的。改进后的钻尖几何形状也产生了正面积极的影响：钻尖横刃的后角比钻尖外角的后角更大；凸起的钻尖提高了钻孔加工的定位精度，减少了轴向力，从而提高了孔的质量。

专利技术的环槽设计也得到了进步优化，钻尖切入工件更加平滑，提高了钻孔的稳定性，尤其是在加工软材料(如低碳钢)时，可最大限度地减少工件材料粘附。除了优化钻尖形式，还增加环槽数量，从原来的8个增加到了12个，重磨次数更多，从而显著提高了钻头的寿命和可持续性。钻交叉孔，钻出口为斜面的孔等高难度加工时，具有高的工艺可靠性，Krato·tec^®（克拉）涂层的高耐磨性、出色的钻孔质量，使其成为整体硬质合金钻头新的标杆。通过 速致系统，霸刀还可以提供直径3-20 mm，最大钻孔深度 12 × D_c的非标钻头，交货时间短。为有需求的客户朋友们解决生产难题。

Ba Dao Solid Carbide drill Bit - Significantly enhances product performance

Badao has launched a new generation of solid carbide drill bits to the market.

The new generation of solid carbide drill bits is specially designed to solve the problems of drilling in steel and cast iron parts and has undergone unique technical improvements: Firstly, the new Krato•tec® (carat) composite coating has been successfully applied to the drill bit products by Ba Dao. The 50% increase in tool life promoted by Ba Dao has been proven through tests to be safe and reliable. The improved geometry of the drill tip has also had a positive impact: the relief Angle of the cross edge of the drill tip is larger than that of the outer Angle of the drill tip. The protruding drill tip enhances the positioning accuracy of the drilling process, reduces the axial force, and thereby improves the quality of the hole.

The ring groove design of the patented technology has also been further optimized and improved. The drill tip can more smoothly cut into the workpiece, enhancing the stability of the drilling. Especially when processing soft materials (such as low-carbon steel), it can minimize the adhesion of the workpiece material to the greatest extent. In addition to optimizing the drill tip form, the number of ring grooves was also increased from the original 8 to 12, and the number of regrinding times was increased, thereby significantly improving the service life and sustainability of the drill bit. When drilling cross holes, holes with inclined exits and other high-difficulty processing, it has high process reliability. The high wear resistance and excellent drilling quality of Krato•tec® (carat) coating make it a new benchmark for solid carbide drill bits. Through the Speedzhi system, Ba Dao can also provide non-standard drill bits with diameters ranging from 3 to 20 mm and a maximum drilling depth of 12 × Dc, with short delivery times. Solve production problems for customers and friends in need.
